The “basic” Org elements are simply translated to their LaTeX counterparts. Markup like bold, italic, etc. are simply translated through org-latex-text-markup-alist.

For those of us who dabble with equations, Org is very accomodating. You can type (LaTeX-style) inline and display equations in exactly the same way (\( \) and \[ \]), and what’s more, if you have a LaTeX environment statement \begin{...} on its own line, Org will recognise it and pass it into the generated LaTeX.

One area where the improvement when moving to Org is particularly apparent is with figures and tables. To simply include an image, an image link alone is sufficient.

file:figures/salvador-dali-persistence-of-memory.jpg

When exported to LaTeX this will be expanded to

\includegraphics[width=.9\linewidth]{figures/salvador-dali-persistence-of-memory.jpg}

As soon as you add a #+caption, though, Org knows you mean business and generates a proper figure.

#+caption: A famous surrealist painting
file:figures/salvador-dali-persistence-of-memory.jpg

\begin{figure}[htbp]
\centering
\includegraphics[width=.9\linewidth]{figures/salvador-dali-persistence-of-memory.jpg}
\caption{A famous surrealist painting}
\end{figure}

As you may have guessed from the fact this works without a LaTeX-specific keyword, this works nicely in HTML too 🙂.

The LaTeX backend also accepts additional image attributes (manual page). For example, to set the image width I can simply add

#+attr_latex: :width 0.4\linewidth

above the image link.

You can do the same with tables:

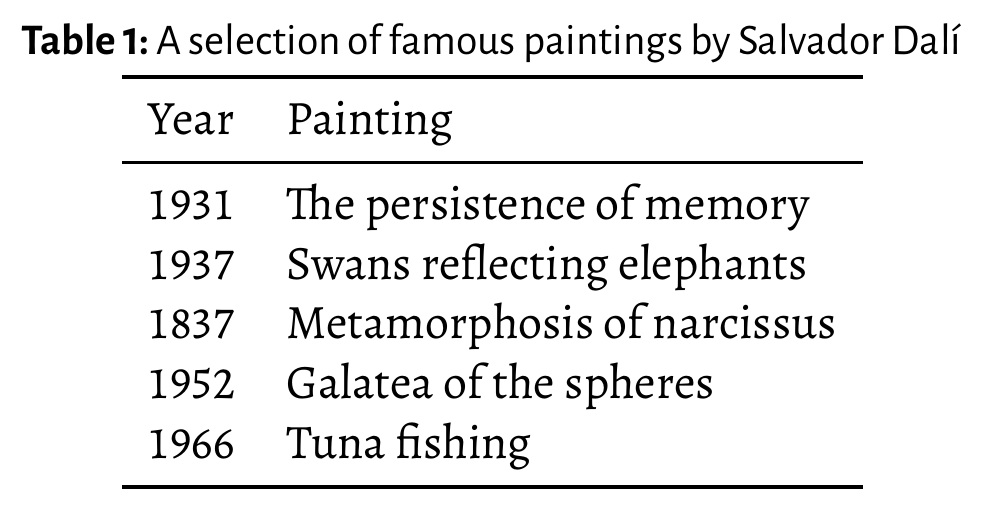

#+caption: A selection of famous paintings by Salvador Dalí
| Year | Painting                   |
|------+----------------------------|
| 1931 | The persistence of memory  |
| 1937 | Swans reflecting elephants |
| 1837 | Metamorphosis of narcissus |
| 1952 | Galatea of the spheres     |
| 1966 | Tuna fishing               |

I like to set (setq org-latex-tables-booktabs t) to use the nice booktabs rules in the generated tables. Just remember to ensure the booktabs package is loaded.

\begin{table}[htbp]
\caption{A selection of famous paintings by Salvador Dalí}
\centering
\begin{tabular}{rl}
\toprule
Year & Painting\\
\midrule
1931 & The persistence of memory\\
1937 & Swans reflecting elephants\\
1837 & Metamorphosis of narcissus\\
1952 & Galatea of the spheres\\
1966 & Tuna fishing\\
\bottomrule
\end{tabular}
\end{table}

Org is nice and does the right thing^TM by including the caption at the top.

There are also some more attributes you can supply to tables. Should I want the table to spread out I could use #+attr_latex: :environment tabularx (as long as I’ve loaded the tabularx package) and then set the columns with :align lX.

By default, source code blocks are translated verbatim. We can do better than that however. We can tell Org to use listings, but I’d recommend going one step further and using minted. For this to work we need to perform three actions:

• Tell Org we want to use minted environments for source code
• Load the minted package by default
• Add -shell-escape to our LaTeX compiler flags, so minted may call pygments.

This can easily be accomplished via the following snippet:

(setq org-latex-listings 'minted
      ;; as long as you have latexmk installed
      org-latex-pdf-process
      '("latexmk -f -pdf -%latex -shell-escape -interaction=nonstopmode -output-directory=%o %f"))
(add-to-list 'org-latex-packages-alist '("" "minted"))

To customise minted, as well as inserting content into the preamble, one can also customise org-latex-minted-options to control what options are applied to each minted environment.

Org has a number of blocks which are treated specially, like #+begin_src for source code, and #+begin_centre for centred text. When exporting this same syntax allows you to wrap Org content in any LaTeX environments (as long as it doesn’t match one of Org’s recognised environments).

For example, if you wrote a warning environment in LaTeX to box and emphasise text, to wrap some Org content in it one simply needs to write:

#+begin_warning
Pay close attention! This is very important.
#+end_warning

and the content will be wrapped in \begin{warning} ... \end{warning}.

Should there be a particular LaTeX command you wish to insert somewhere, you simply need to put it on its own line with #+latex: in front and it will be transferred to the generated LaTeX (this works with other formats too).

#+latex: \newpage

For larger snippets of LaTeX, there’s always the export block.

#+begin_export latex
\cleardoublepage
\vfil
\hfil This page is intentionally left blank \hfil
\vfil
\newpage
#+end_export

Should you wish to include the line in the preamble (before \begin{document}), then all you need to do is use #+latex_header:.

#+latex_header: \newcommand{\RR}{\mathbb{R}}
#+latex_header: \usepackage{svg} % so that [[file:*.svg]] works nicely

This is great for adding one-off \usepackage commands, but what if you find yourself wanting a package (like svg) to be always included? Well the we have the aforementioned org-latex-packages-alist which will include the packages set when exporting; you can even set some packages to only be included when using a certain LaTeX compiler.

Should you want to use a certain preset preamble, you can make use of the #+latex_class keyword. This is used to set the base preamble template used when generating the LaTeX. See org-latex-classes for what’s available by default. You should see entries for:

• article
• report
• book
• beamer

One of these is always used when generating LaTeX; when no #+latex_class is set in the document, the template named by org-latex-default-class will be used.

What’s great about this is that is makes it really easy to add your own templates. Each template simply takes three components:

1. A name
2. A preamble template
3. A series of format strings to translate headings to LaTeX, with and without numbering

For example, I’m quite a fan of the KOMA-script family. Should I want to add a kart class (for: koma article), I simply need to do something like the following:

(add-to-list 'org-latex-classes
             '("kart" ; class name
               "\\documentclass{scrartcl}" ; preamble template
               ("\\section{%s}" . "\\section*{%s}") ; H1 translation
               ("\\subsection{%s}" . "\\subsection*{%s}") ; H2 translation
               ("\\subsubsection{%s}" . "\\subsubsection*{%s}") ; H3...
               ("\\paragraph{%s}" . "\\paragraph*{%s}")
               ("\\subparagraph{%s}" . "\\subparagraph*{%s}")))

See the documentation for org-latex-classes for more information on how the preamble template in handled.
